20 3D Print Ideas for Drones

20 3D Print Ideas for Drones

Unmanned aerial vehicles (UAVs), sometimes known as drones, are vehicles that can operate independently. As a result, a drone does not have to be an airplane; it can also be a car, a boat, or even a hovercraft.

UAVs are made up of a frame, a flight controller, motors, propellers, speed controllers, and maybe first-person view (FPV) equipment in general.

Drones are becoming increasingly important in various industries, from defense to surveillance and goods delivery. However, 3D printing is one technology that is making use of this use. There are a variety of 3D-printed drones on the market.

If you have a 3D printer, you can purchase a drone and use additive manufacturing to improve your ideas or you can simply print a simple one from scratch.

In this article, we'll go over what to keep in mind while 3D printing drone parts, the advantages of 3D printed drone parts, and the best 3D printed drone ideas.

How to Get Started: What to Consider

While 3D printing brings up a whole new world of possibilities in terms of added functionality, there are a few things to keep in mind when 3D printing your drone parts.

  1. 3D printing takes time

Printing a small-sized part of good quality can take several hours. Becoming an expert in 3D modeling and 3D printing necessitates the development and some level of expertise. A beginner may become frustrated in the early phases of designing the elements they want.

But don't worry; there are several tutorials available online, as well as places where you may locate them. You can download and print STL files of 3D printable drone parts without having to develop them yourself.

  1. The weight of your airplane

This is a significant thing to bear in mind. It is not necessary to print and install everything that can be printed. Every gram on board affects flying time and performance, especially on rotary-wing aircraft.

As a result, a GoPro mount, head tracker, and drop mechanism aren't all that necessary on a craft designed for long flying periods. Parts like the frame, propellers, battery-pack casing, and antenna holder can be printed.

The Best Materials and Their Suitability

It's critical to choose the correct material since every gram of extra weight costs you time in the air. this is because the heavier the drone is, the faster the battery drains. At the same time, trying to maneuver properly with a shaky structure built of substandard pieces would be ridiculous.

There are a variety of "high-grade" 3D printing filament options to choose from to get the best results.

  1. TPU

This is the most common material you'll see, especially on mini-quadcopters. This is due to its extreme flexibility, which allows it to bend on impact, absorbing energy and protecting the components to which it is attached. Because of its flexibility, it can absorb vibration and reduce the quantity shown in the video. Thankfully, With the introduction of in-camera stabilization, this has become less of a challenge.

TPU also thrives well in very harsh weather conditions. Bumpers, camera mounts, antenna mounts, and propeller guards are the parts most commonly printed in TPU.

  1. ABS

ABS is a versatile material that may be used to create working prototypes, jigs, fixtures, manufacturing tools, and production parts, as well as drones. It's suitable for applications that require a high level of strength, ductility, machinability, and thermal stability. However, as compared to PLA, it is more likely to wrap.

  1. PLA

This is the most widely used and least expensive 3D printing material. It has no odor and is suitable for novices because it does not require a heated bed. PLA is a good choice for printing drones because of its strong strength, medium durability, low flexibility, moderate shrinkage, and low wrapping rate.

However, PLA is fragile and has a lower impact strength and elongation before breaking than ABS. PLA is also biodegradable and can degrade in the sun, making it unsuitable for long-term use.

  1. Nylon

Nylon is a lightweight, strong material that has good impact and temperature resistance as well as great fatigue resistance, making it ideal for practical prototypes and finished products.

The problem with this material is that 3D printing beginners will find it tough to control. To create the required temperature to print, you'll also need a heated bed. Propeller guards can be made of nylon, but it's less popular because it's more difficult to print.

  1. Carbon-Fiber-Reinforced Nylon

While TPU and nylon have their applications, they aren't appropriate for all parts. A material like carbon-fiber-reinforced nylon is recommended for applications that require stiffness and strength, such as specialized airframes. The toughness of regular nylon is combined with the rigidity of carbon fiber in this design. It's also less difficult to print than nylon since it warps less and adheres better to the construction plate.

The Best 3D Printed Drone Ideas

The top 20 best drone projects produced with 3D printing technology are shown below. We'll also give you some pointers on how to 3D print your drone. Let's get started.

  1.  The Aux Drone Lifeguard

Source

General Drones designed and manufactured the Aux Drone lifeguard drone. It is one of the most advanced drones that can readily operate in a challenging and hostile environment. It is only for coastal places that have been created in response to their changing conditions. It is most suited for beach monitoring, port security, rescue operations, and exponential tourist recovery, and is specifically designed to control the capacity of coastal lines.

It has precise control and high speed, allowing it to reach inaccessible regions and assist those in need more quickly. Without anyone moving, a controller may effortlessly operate this amazing butterfly from one room and view out across the beach.

  1. The Tundra

Source

Hexadrone collaborated with Raphael Cheze to create and produce Tundra. Tundra is a first-of-its-kind industrial drone that is entirely modular and simple to operate. Tundra is utilized in a variety of industries and for a variety of functions.

Tundra has quickly detachable arms and three quick-release attachments, making it easy for drone pilots to disassemble it. Tundra is one of the best drones ever built because of its specialty and ability to suit all variable criteria. It's designed to withstand harsh weather and environments. It has a rough and robust structure, as well as a beautiful appearance, thanks to 3D printing. It is designed to be waterproof. Tundra, on the other hand, got the Red Dot Award in 2021.

  1. The Hovership MHQ2

Source

The Hovership MHQ2 is a 3D printed micro quadcopter drone that is a revised version of the original MHQ created by the Hovership. The usefulness and longevity of this enhanced item have both improved. It has the same hardware as the previous generation and can self-fold.

The 3D-printed Hovership parts are strong and long-lasting. You can turn this quadcopter into a beast by simply adding a few modest upgrades. The new 3D printed Hovership MHQ2 has less torsion, making it easier for this quadcopter to take off.

  1. The Nibbler

Source

The United States Marine Corps conceived and developed the Nibbler, a 3D-printed military drone. This military drone was created to give exceptional services in the future. Nibbler, which had been constructed previously, was unprepared for large-scale battles.

This advanced 3D-printed drone was previously solely used for nibbling damage, but it is now ready for warfare. This 3D-printed Nibbler can be utilized in a variety of ways. Drone pilots, like Tundra, may simply detach or attach the nibbler's pieces for a variety of purposes, including hauling heavy guns and ammo, gathering intelligence in dangerous situations, and conducting low-key surveillance, among others.

The Nibbler's ability to be controlled by a smartphone or tablet is one of its most notable features. The nature of its assembly makes it simple to construct and manage. It takes 6 hours to complete the project from printing to assembly, including soldering and wiring.

  1. Skeleton X-14 Quadcopter

Source

The Skeleton X-14 Quadcopter is one of those aircraft that you can 3D print at home with ease. This 3D printed drone has a lot of functions, and you can easily alter and redesign it for show-offs using 3D printing.

Building a quadcopter necessitates a complicated mesh-based design. One of the most crucial aspects is that 3D printing allows you to easily rearrange your plan. On Thingiverse, you may choose from a variety of spectacular skeleton X-14 quadcopter designs.

  1. Piccolissimo

Source

Piccolissimo, one of the most impressive 3D-printed drones, was conceived and built by University of Pennsylvania students. They've developed the world's tiniest self-propelled drone. Piccolissimo is an Italian word that means "tiniest," which describes the two devices.

The first device has a propeller and a power source, while the second has an infrared receiver that regulates the speed. With the help of 3D printing, this little drone was conceived and produced.

  1. 3d Robotics And My Mini Factory Drones

Source

Cooperationcooperation between 3D robotics and MyMiniFactory produced this multipurpose drone. Until now, this group has produced several drones. Its pieces and dome can be simply downloaded and printed via 3D printing. Components for making your masterpiece fly in the skies can be purchased online.

One of their most recent drone models, Iris+, is the result of their collaboration. You can purchase its components and 3D print them to your specifications. You can use its technical information and specification details to help your design achieve the greatest printing results.

  1. The Xl-Rcm

Source

The Xl-RCM is a 3D printed miniature personal nano pocket drone that you can make yourself. It was designed for civilian use when it was originally released in 2014. At the time, it weighed around 40 grams. The XL-RCM is a simple-to-build drone that is still the ideal choice for many pros and hobbyists. It is inexpensive and easy to keep.

  1. The Dark Matter

Source

Clogworks was responsible for the design and development of Dark Matter. Dark matter drones are built on the concept of modularity. You may 3D print the design at home as well. You may make it at home by acquiring its parts, which are versatile and easy to maintain. This drone has fully removable arms as well as a payload attachment system.

  1. Arrow 270

Source

Arrow Drone has unveiled one of the industry's quickest racing drones. The Arrow 270 is a game-changer, with a top speed of 150 km/h. It has an autopilot option and is extremely customizable. This drone is suitable for both novice and experienced pilots.

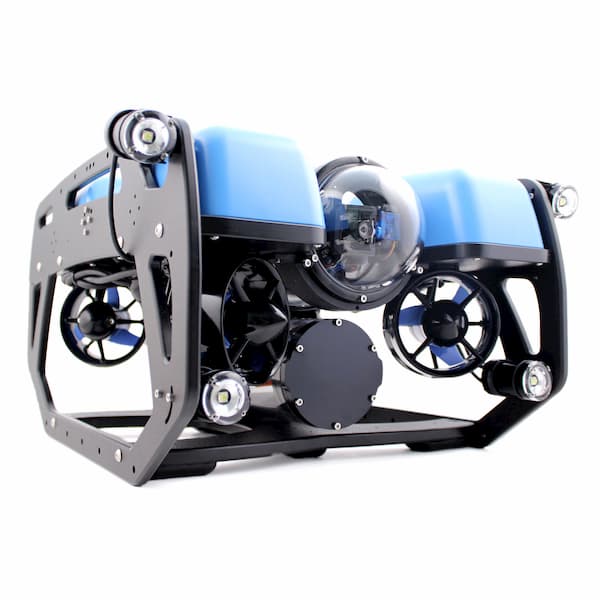

  1. Blue Robotics and Their Underwater 3D Printed Drones

 Source

A blue robotics startup designed and built underwater 3D-printed drones. They use additive manufacturing to put this iconic concept together. Only 3D printing allows for the fabrication and design of items.

Other traditional procedures are unable to complete the entire process. Developing underwater 3D printed drones might be a difficult task. However, if you succeed in creating this beast, you will be filled with pride and excitement.

  1. Voxels Quadcopter

Source

Voxel8, a small high-tech materials company situated in Summerville, Massachusetts, has created its drone, complete with circuitry, with 3D printing.

This company is thought to have created the first 3D electronics printer, bringing the 3D printing industry to a whole new level. Autodesk's Project Wire, a design software developed exclusively for 3D electronic printing, was used to create the drone and its circuits.

  1. Pixxy Pocket Drone

Source

The Pixxy Pocket Drone was the smallest 3D Printed FPV/UAV platform ever accessible for public usage when it was released in March 2014. This little drone, weighing only 40g, fits in the palm of your hand and is ideal for flying through tight locations. The Pocket Drone was created with convenience, safety, and efficiency in mind. It can be flown both indoors and outdoors.

  1. Talon X1

Source

Airwolf 3D has created a fun and instructive alternative for students and beginners to learn about 3D printing and drones. The Talon X1 was created to be used with the STEM curriculum to assist kids to develop important skills in numerous parts of technology and design. The 250mm quadcopter is presently available as a kit, allowing students to print and construct the drone from the ground up.

  1. Anisoptera Racer

Source

The Anisoptera Racer is the ultimate high-speed drone to help you race past the opposition. The Anisoptera Racer was created with an emphasis on simplicity and it was designed to be 3D printable so that everybody may have speed access.

  1. Arkadia Quadcopter

Source

The Arkadia is a highly configurable drone that is ideal for pilots wishing to add to their collection or newcomers to the sport. The 180mm Arkadia has been modified to handle a GoPro mount and can hold 1806 motors and smaller. It also features a robust but compact frame.

  1. Hovership Foldable Mini H-Quadcopter

Source

The Hovership Mini H-Quad is a tiny, precise machine that is ideal for the on-the-go pilot. Its compact and sturdy design, which includes contractible arms and a vibration-isolated camera layer, allows for controlled flying at a variety of heights.

  1. Ceres Galliot Micro Quad

Source

The Ceres Galliot MicroQuad is 110mm in size and is based on the Ceres Galliot from the video game Destiny. Available with 7mm or 8mm motors and with or without FPV, the TX (FX-758-2) can hold a Micro Scisky FC, a 600TVL camera, and the TX (FX-758-2). The drone is also extremely steady and long-lasting, making it ideal for fighting!

  1. Game Of Drones Sumo Quad

Source

This drone, appropriately named for its unrivaled toughness, has proven to be capable of withstanding a few blows. The Sumo Quad is an FPV drone with a streamlined design that prioritizes security and durability. To ensure longevity, the drone can be constructed with adhesive foam, glue, and a few Nylock nuts.

  1. Millennium Falcon

Source

You can now fly your very own Millennium Falcon straight from the Star Wars galaxy. On impact, the thin 0.5mm frame provides for maximum flexibility. This straightforward structure is made to fit over a store-bought drone.

Benefits of 3D Printing Drone Parts

  • The biggest benefit of 3D printing parts is that they may be completely personalized. They're also quite inexpensive (provided you already have a printer and filament), and ideas may be quickly iterated from concept to finished product.
  • TPU is the best material to use for the mount because it will absorb vibration from the frame and keep the GoPro in position, while strong nylon will absorb impacts and protect both the propeller and the struck object. Airframes, canopies, and camera gimbals might all be made out of other robust materials such as reinforced nylon.
  • Another advantage of employing 3D printed parts is their low density. Setting parameters such as the number of perimeters and the infill percentage can be modified in 3D printing to drastically reduce weight, with the former having a greater overall influence.
  • There are many color and material options for printed pieces. This way, the material with the optimal mechanical qualities for the part will be used. You can decide to have a blue TPU GoPro mount and nylon propeller guards, for example.
  • Parts may be readily iterated in addition to being completely bespoke and lightweight. When creating a canopy, for example, a first version can be printed (likely in a low-cost material like PLA), and any necessary adjustments can then be simply made in the next iteration. When the model is complete, it can be printed in a more expensive material like carbon-fiber nylon.
  • If a part breaks, part creation can be started immediately if you already have the filament and a printer. Even though many shops provide quick shipping, it's unlikely that it'll be as quick (or as enjoyable) as printing the part yourself.

Conclusion

We've looked at the best 3D-printed drone options for you to select from, as well as the advantages of 3D printing drone parts and the diversity of materials available. You can create and customize drones with additive manufacturing if you have a 3D printer.
